·Specification and model
index | barrel diameter(mm) | Equipment length(mm) | Equipment volume(m³) | Maximum processing capacity(m³/d) | notes |
1 | 2200 | 9600 | 36 | 1000 | |
2 | 2600 | 11000 | 60 | 1800 | |
3 | 3000 | 14000 | 100 | 2800 | |
4 | 3600 | 17000 | 165 | 4700 | |
notes | The dehydration space for crude oil is adjusted according to the amount of crude oil. |
·Equipment characteristics
The equipment body, internal structure, and aggregate filler are all made of composite materials, equipped with a high-frequency pulse electric dehydration device, which integrates functions such as three-phase separation, heating, high-frequency electric dehydration, sand discharge, etc. The processing process is short, efficient, occupies less land, saves investment, is corrosion-resistant, has a long service life, and has low operation and maintenance costs.

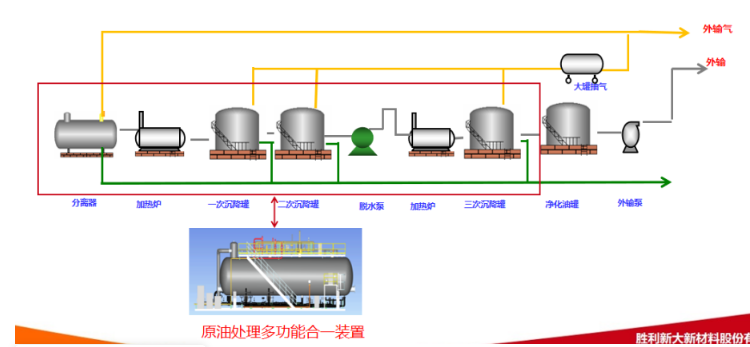

·Equipment application process flow
