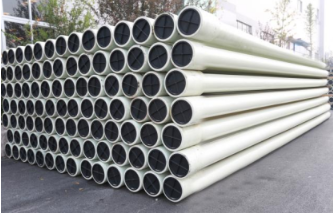

Composite material ground pipeline

High strength glass fiber untwisted coarse yarn is used as the reinforcing material, and epoxy resin is used as the matrix material. It is prepared by winding and high-temperature curing.

·Production scope

Nominal diameter: DN32-DN900;

Pressure rating: 3.45MPa-34.5MPa.

Can be designed and produced according to customer needs.

·Execution standards

API 15HR-2016 High pressure fiberglass pipeline pipes

SY/T 6267-2018 High pressure fiberglass pipeline pipes

ISO 14692-2017 Petroleum and Natural Gas Industries - Glass Fiber Reinforced Plastic Pipes

·Application field

Transportation of oil, gas, water, and mixtures in fields such as petroleum and petrochemicals.

·Product features

Corrosion resistance, strong designability, good insulation performance, and convenient installation;

Compared to pipes of the same specification: the inner wall roughness is 10% of that of steel pipes;

The weight is 30% of the steel pipe, and the thermal conductivity is 0.6% of the steel pipe.
