index | Design parameters | Numerical value |
1 | Maximum suspension load | 120 kN |
2 | Rated lifting capacity | 80 kN |
3 | stroke | ~5.4 m |
4 | jig frequency | ~3 Times/minute |
5 | power | 55 kW |
6 | balanced approach | Electric energy storage balance+counterweight |
7 | Length×Width×Height | 7m×2.2m×10.3m |
8 | weight | 18t |

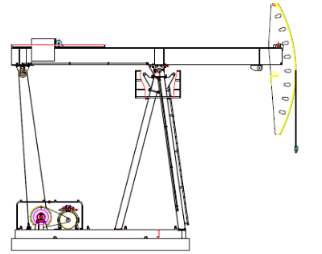

The traction beam pumping unit adopts the transmission design scheme of a low position traction long stroke pumping unit, which has the same application characteristics and the following characteristics:
1. No gearbox transmission, simple mechanism, no need for oil lubrication;
2. No crank connecting rod mechanism, achieving uniform speed operation and good motion characteristics;
3. The overall weight is only 18 tons, significantly reducing the weight;
4. Adopting electric sliding counterweight, installed on the rear side of the beam for easy adjustment; Moving the counterweight position can achieve the swing of the traveling beam, facilitating the adjustment of the traveling beam during well repair operations;
6. It can ensure that the pumping rod string is always in a tensile state, avoiding accelerated damage to the rod string under pressure;
7. Equipped with beam protection to prevent excessive swing angle of the beam;
8. The driving device has a small size, compact structure, and is easy to achieve safety protection.
