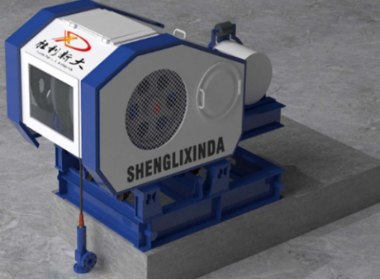

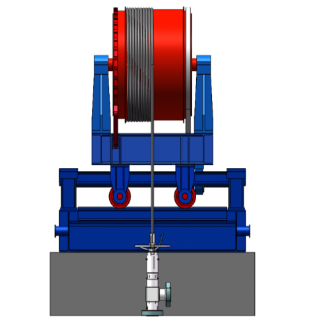

In 2023, a unique low profile synchronous displacement ultra long stroke pumping unit was developed.
Serial Number | Design parameters | numerical value |
1 | Rated lifting capacity | 100 kN |
2 | stroke | ~50 m |
3 | jig frequency | ~18 times/hour |
4 | drum diameter | Φ1050 mm |
5 | Rod diameter | Φ28mm |
6 | power | 47 kW |
7 | balanced approach | Energy storage balance |
8 | Overall weight | 8.5ton |
9 | Length X Width X Height | 3mX2mX2.3m |
10 | Automatic control, remote monitoring |
·Technical characteristics
1. Optimized design for low height, small size, light weight, and can be transported and installed as a whole machine;
2. Gearless gearbox transmission, free of oil lubrication and maintenance;
3. Balanced electric energy storage, good balance, energy conservation and consumption reduction;
4. Intelligent control system, set operating parameters according to the requirements of oil production technology, comprehensive automatic operation protection function, real-time operation information collection and transmission.
